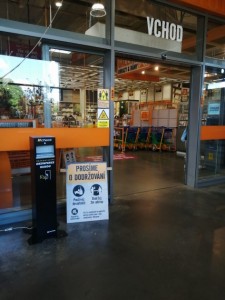

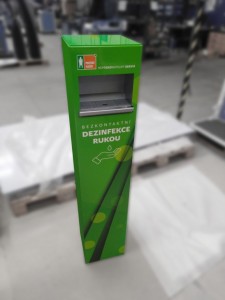

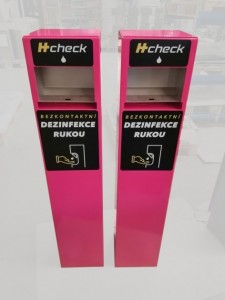

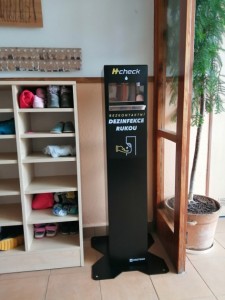

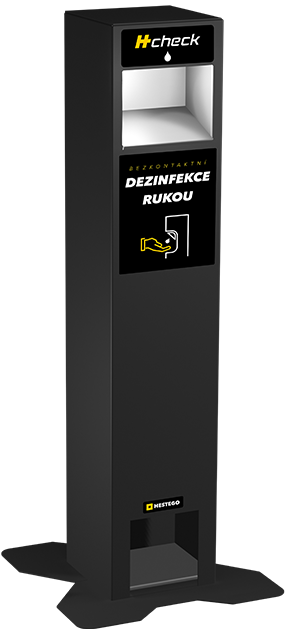

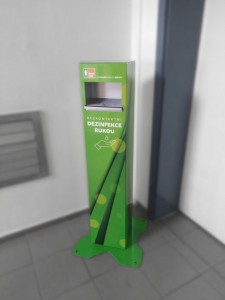

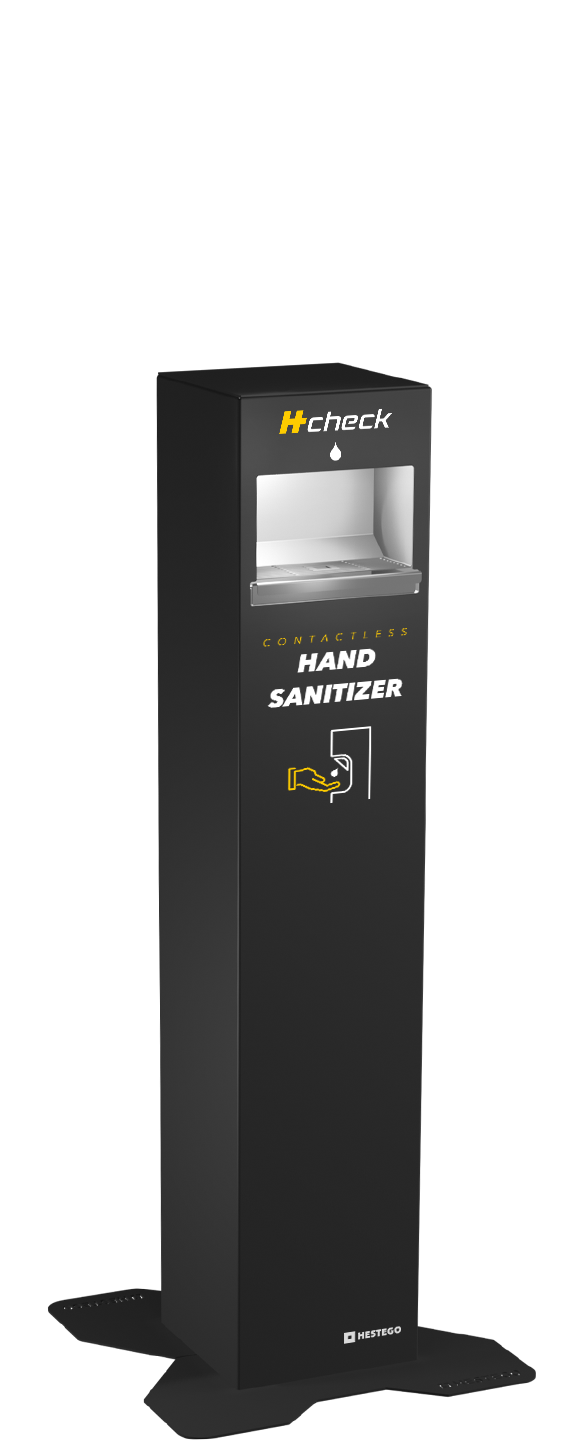

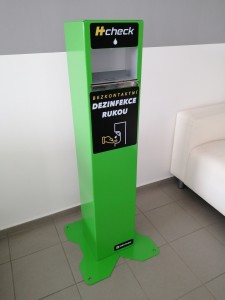

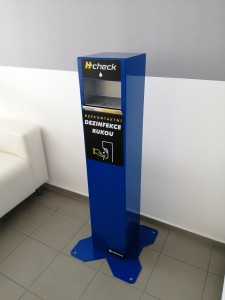

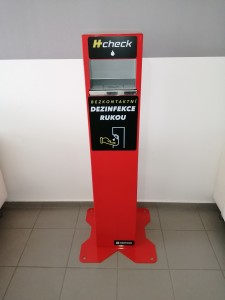

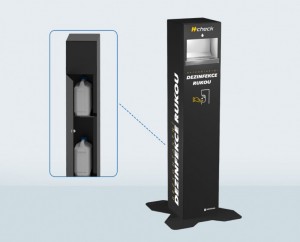

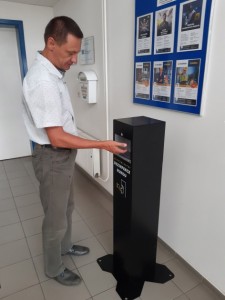

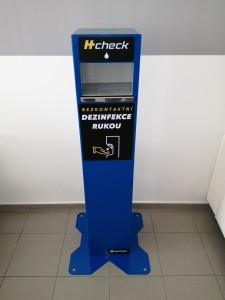

H-check is a new technological device serving as a protective means and prevention against the spread of disease, not only Covid-19 but also other types of viruses and bacteria. It is suitable especially for business and government offices, schools, shops, hotels, surgeries, hospitals, retirement homes, long-term patient care units, etc.



Technical data

  • Dimensions Stand:
    width: 250 mm, depth: 250 mm, height: 1234 mm (height including the platform)
  • Material of Dispensing Opening:
    Stainless Steel
  • Dimensions Base:
    width: 474 mm, depth: 476 mm, height 4 mm
  • Operating voltage:
    10 - 12 V
  • Weight:
    34 kg without disinfectant liquid
  • Power supply:
    power adapter 230V/12V, 1,5A, terminal 5,5x2,1 mm, protection class III

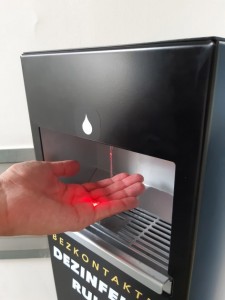

  • Dispense Opening for Disinfection:
    203 mm x 124 mm at the height 1016 mm, contactless
  • Alternative Power:
    8 AA alkaline batteries or AA large capacity rechargeable batteries. The recommended minimal capacity is 2,500 mAh or the power adapter 230V/12V, 1.5A, the terminal part 5.5x2.1mm
  • Material of Casing and Platform:
    steel DC01
  • Operating temperature:
    +10°C up +40°C
  • Surface of Casing and Platform:

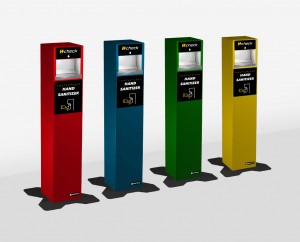

    RAL 9005 powder coating, matting, smooth. The colour design and graphic sticker may differ from the standard, depending on the customer´s order.
  • Minimum Dispensing Batch:
    2,5 ml

Downloads

Declaration of Conformity.DOC
Declaration of Conformity
Instruction for installation and maintenance.pdf
Instruction for installation and maintenance
Flyer.pdf
Flyer
Information in case of a complaint.pdf
Information in case of a complaint
